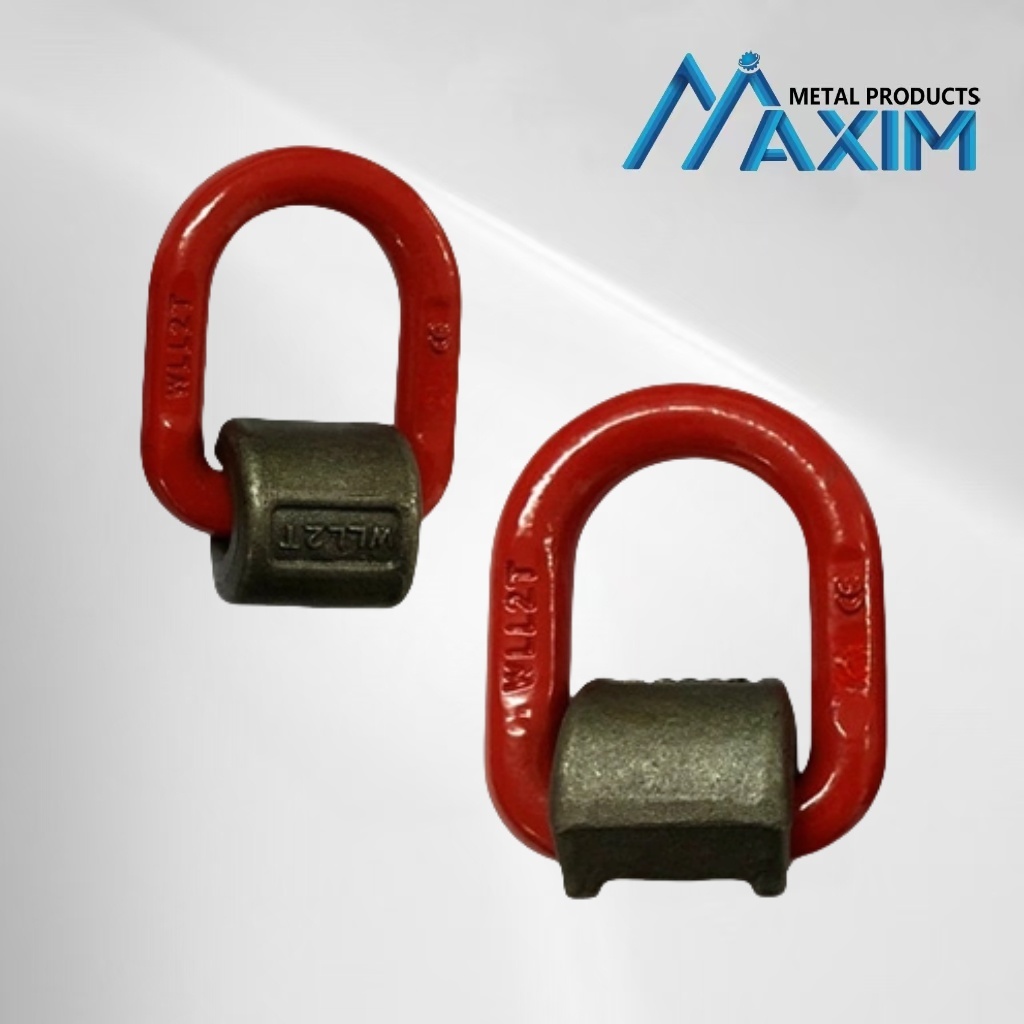

Carbon Steel G80 Forged Weld-on Pivoting D ring With Spring Clamp
Introduction:
Weld on pivot d link is most commonly used for lifting and load restraint applications. There are 6 options with different sizes and capacities from 1 tonne for 15 tonnes. They are also used as lashing eyes. These lashing eyes are then welded on for example a trailer, so the driver has a link to connect his lashing materials quickly. These lashing eyes are provided with a lacquer finish and are therefore cheaper than stainless steel lifting eyes. limit. They are welded on with the basement in shipping deck plate, truck tractor, trailer ,vechile,steel plate,etc
Specifications:
1. grade:G80
2.Material:alloy steel
3.Process:drop forged
4.Surface:powder coated
5.W.l.l:1-15t
6.Usage:lifting
7.Size:13mm-21mm
Features:
Fatigue Rated x 1.5 WLL for 20,000 cycles
Proof Tested - 2.5 times Working Load Limit
100% Magnaflux Crack Detected
Super Alloy Steel
Grade 80
This product has a rated WLL but is subject to the correct welding procedure being carried out by a suitably qualified welding.
This Lifting Point is ideally suitable for lifting and lashing applications such as excavators, low loaders, lifting beams etc.....
Widely used on farm machinery, trucks, steel hulled marine vessels nd material handling equipment.
