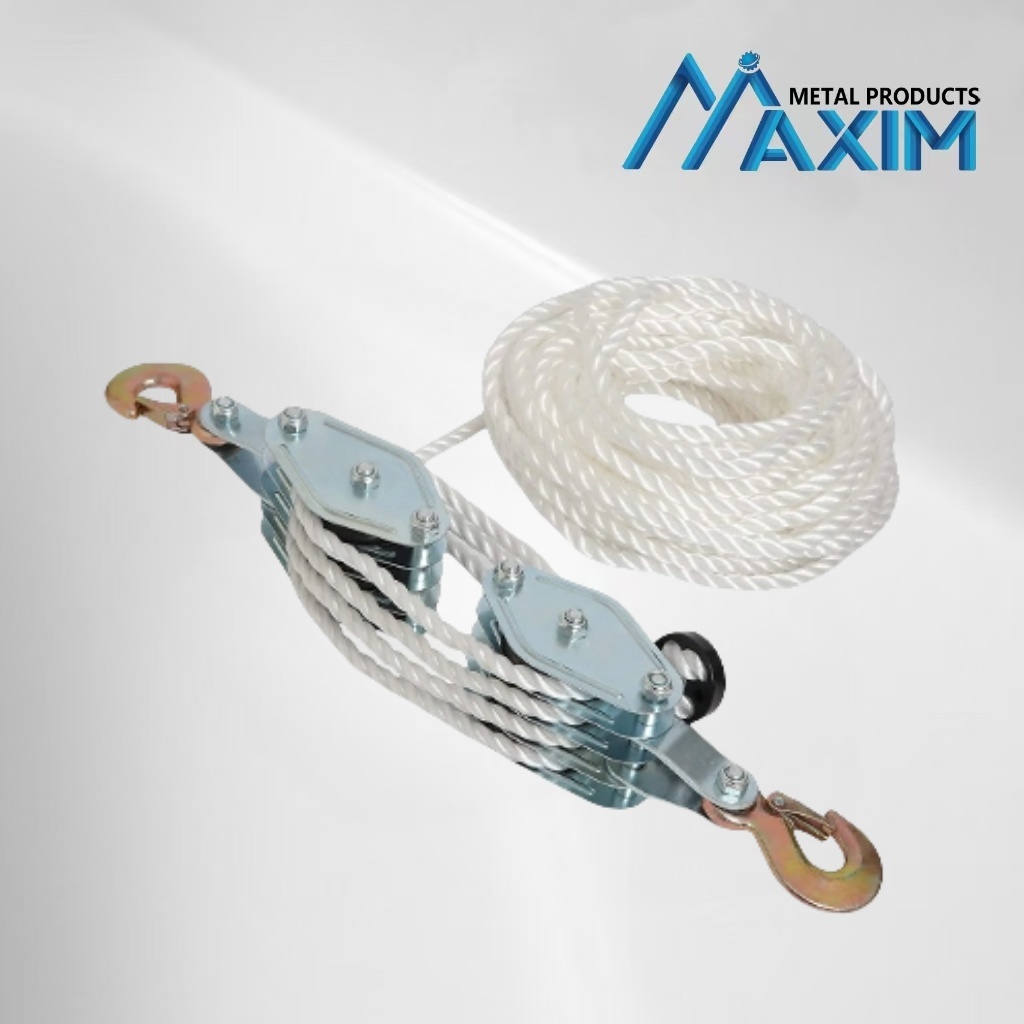

Multi‑Rope Hoist Pulley With Hook Strength Lifting Tool Pulley Block2 ton hand block and tackle (4000 pounds) capacity four wheel rope pulley hoist. The hand manual rope combines of zinc plated drop forged eye sling hooks and clips,pulley as well as 65ft*5/16 heavy duty poly rope. It is ideal easy using and inexpensive product for lifting most heavy objects, up to 4000 lbs. Base on the pulley lever theorem, 7:1 lifting power design makes you easy to lift. It is a great product for housing, fishing, camping and boating, as well as a must have for private application. The lightweight design provides the portability and storage.
Specifications:
Material: A3 steel, nylon pulley.
Zinc plated, drop forged eye sling hooks and clip.
Steel Thickness: 1 mm
Rope Dia: 6 mm
65 feet rope poly rope.
Lifting Power Ratio: 7:1
Working Load Capacity: 2 Ton
4 wheels for smooth rolling.
Ideal versatile hoist for farm, home, shop, autos, trucks, ATVs, boating, sport, hunting and lawn and garden.
Feature:
- 【Super Load】The block and tackle pulley system is made of heavy-duty pulleys and strong ropes that can handle up to 4,400 lbs without problem (recommended for daily use is no more than 1,100 lbs).
- 【High Lifting Rate】The pulley system has a lifting power ratio of 7:1, which allows you to lift weights with 1/8 of the force. Can lift heavy objects easily with one hand. The block and tackle are equipped with 65 ft of rope and a maximum service distance of 8 ft in 4 blocks.
- 【Premium Material】The shell and hooks of the rope hoist are made of galvanized steel for high strength and rust resistance, while the rope is made of high-strength tensile polypropylene material with a breaking strength of 4400lbs/2T, ensuring that it will not wear out in long-term use.
- 【Enhanced Design】The reinforcement design of the side of the block and tackle can effectively prevent the block and tackle pulley system from twisting and side bending during use. A four-pulley system is also more load-bearing and durable than a three-block hoist pulley system.
- 【Wide Application】The pulley hoist is ideal for garages, camping, ships, construction sites, hunting, tree cutting, and attic use; Can be used to lift animals, trees, furniture, bicycles, motorcycles, toolboxes, etc.
Poly rope pulley hoist housing is made of zinc- plated steel to resist rusting and wear and tear while in use. Heavy duty lifting made easy. That way you don't have to worry about it breaking down on you.
QUALITY PRODUCT – The rope hoist includes rope made with polypropylene to ensure no fraying when in use. 2.5" housing made of steel plated with zinc and deep forged hooks and slings makes for smooth operation. Rope is also mold and mildew resistant that way everything is absolutely safe to use ensuring that you can lift safely and easily.
HUGE WORK LOAD CAPACITY – heavy-duty block and tackle mechanism minimizes the work you have to put in when lifting. With a maximum weight capacity of 4,000 Pounds, you can be sure this will do most of the work for you. All of the heavy lifting is made easy on you so you can keep your body safe.

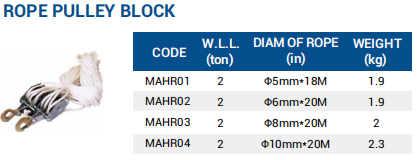

SPECIFICATION FOR Rope Pulley Hoist
|
|
CODE NO
|
SIZE (LBS)
|
W.L.L.(kg)
|
DIAM OF ROPE
|
NET/GROSS WEIGHT(kg)
|
|
MAHR01
|
500
|
200
|
Φ5mm*18M
|
20/22
|
|
MAHR02
|
800
|
360
|
Φ6mm*20M
|
23/25
|
|
MAHR03
|
2000
|
900
|
Φ8mm*20M
|
18/20
|
